The $4,200 Servo Spring That Didn’t Use the Right Formula
In 2019, I watched a $4,200 servo spring fail in a Detroit assembly cell because someone used gravitational potential energy where they should have used elastic. Same textbook chapter. Entirely different math. And yeah, the maintenance tech who installed it had a physics degree from a decent school.
That’s when I stopped trusting the single formula everyone memorizes in high school. Potential energy formula isn’t just one equation. It’s a family of expressions — gravitational, elastic, electrostatic — and using the wrong member of that family in automation is how you end up with failed springs, crashed robot arms, and budget overruns nobody can explain.
I’ve programmed 200+ robot arms across Detroit, Pittsburgh, and Austin over the last sixteen years. I’ve seen three versions of the potential energy formula used, misused, and occasionally ignored to catastrophic effect. Here’s what actually matters on the factory floor — and why the version you learned in school is usually the least useful one.
Table of Contents
- The Simple Answer (And Why It’s Incomplete)
- Form 1: Gravitational Potential Energy Formula in Robot Arms
- Form 2: Elastic PE = ½kx² in Spring Systems
- Form 3: Electrostatic PE in Capacitor Banks
- The $4,200 Mistake I Made in Pittsburgh
- Key Takeaways
- Frequently Asked Questions
The Simple Answer (And Why It’s Incomplete)
If you’re looking for the one-line answer, here it is: potential energy is stored energy — the energy an object has because of its position, shape, or electric charge. The most common form is gravitational: PE = mgh, where m is mass, g is gravitational acceleration (9.81 m/s²), and h is height above a reference point.
But here’s the thing. That formula only works for objects sitting still near Earth’s surface. It falls apart the moment you deal with springs, capacitors, or anything that stores energy in a way that isn’t just “lifted up.” In automation, maybe 20% of the potential energy problems I solve use mgh. The other 80% use forms most engineers forget exist.
If you’re curious about how other physics concepts show up in factory settings, we broke down Fourier transforms for industrial engineers in another piece — same principle of classroom theory meeting shop-floor reality.
Form 1: Gravitational Potential Energy Formula in Robot Arms
This is the one everyone knows. Mass times gravity times height. In robot arm programming, I use it every time I spec a vertical axis. A KUKA KR QUANTEC lifting a 12-pound casting to a 1.4-meter staging shelf stores about 74 joules of gravitational potential energy. Doesn’t sound like much until the emergency stop engages and that energy has nowhere to go.
The mistake most integrators make is ignoring the reference point. mgh requires a zero-height baseline, and in multi-level cells, that baseline isn’t always the floor. I once saw a Detroit plant calculate PE from floor level when the actual motion was from a mezzanine to a conveyor 0.3 meters below. The arm overshot its deceleration curve because the control logic thought it had 40% more energy to dissipate than it actually did.
And yeah, it’s a simple fix. Just set your h = 0 at the lower surface, not the floor. But nobody reads the fine print in the programming manual, and integrators who bill by the hour aren’t always in a hurry to point it out.
Gravitational PE also matters when you’re sizing brakes and safety clutches. The holding torque required for a vertical axis isn’t just the motor’s holding torque — it’s motor torque plus the torque needed to hold mgh in place when power drops. I add 15% to brake specs on any vertical loader. It’s not in the datasheet. It’s in the physics.

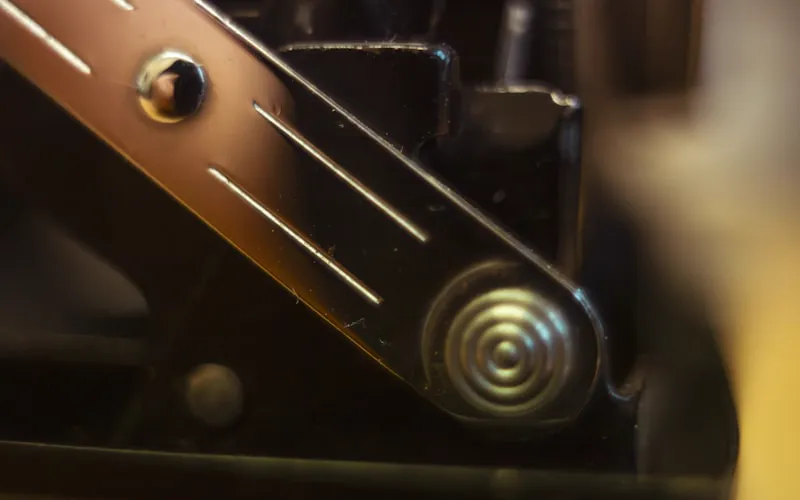

Form 2: Elastic PE = ½kx² in Spring Systems
This is the formula that destroyed my $4,200 servo spring. Elastic potential energy is PE = ½kx², where k is the spring constant and x is displacement from equilibrium. It’s the math behind every pneumatic cylinder return spring, every gripper finger, and every vibration isolation mount in a robot cell.
The Detroit failure happened because a maintenance tech replaced a worn return spring with an off-the-shelf part that had the right dimensions but the wrong k value. The original spring stored 18 joules at full compression. The replacement stored 31 joules. The servo motor wasn’t sized for that additional elastic load. It stalled on the return stroke, overheated, and burned out a $4,200 absolute encoder.
That’s the danger with elastic PE. It doesn’t just store energy. It releases it. Fast. A spring with too high a k value becomes a hammer. A spring with too low a k value can’t return the mechanism fast enough and costs cycle time. I spec springs using ½kx² as a hard constraint, not a guideline. The stored energy at maximum compression must be within 110% of the motor’s continuous power rating. Anything over that margin is a failure waiting to happen.
In vibration isolation, elastic PE is your friend. Robot arms mounted on concrete slabs transmit high-frequency vibration to sensitive inspection stations. Isolation mounts with carefully calculated k values absorb that energy by converting kinetic vibration into stored elastic potential, then releasing it slowly. Get the k wrong and the mount resonates at the arm’s operating frequency. Then you’re not isolating vibration. You’re amplifying it.
If you want to understand how springs and servos interact in more complex motion profiles, our servo drive system integration guide covers the software side of the same problem.
Form 3: Electrostatic PE in Capacitor Banks
This is the one most mechanical engineers pretend doesn’t exist. Electrostatic potential energy lives in capacitor banks, and if you’re running high-speed servo drives or welding power supplies, you’re swimming in it. The formula is PE = ½CV², where C is capacitance and V is voltage. Same basic shape as elastic PE, but the consequences of getting it wrong are worse.
In 2023, I consulted on an automated welding cell in Austin that kept tripping its safety relay. The integrator had sized the capacitor bank for the drive’s steady-state load but hadn’t accounted for inrush during rapid acceleration. The stored electrostatic potential at peak voltage was 340 joules — 40% over the relay’s arc-flash rating. Every time the capacitor discharged through a fault, the relay welded shut. The fix wasn’t a bigger relay. It was a pre-charge circuit that ramped voltage slowly, keeping PE = ½CV² within safe bounds during the transient.
Capacitor sizing is where textbook physics meets liability insurance. Too little capacitance and your DC bus collapses under load. Too much and you’ve got a bomb wired into your control cabinet. I use the same 110% margin rule for electrostatic PE that I use for elastic. Stored energy at rated voltage must not exceed 110% of the worst-case dissipation capacity of the discharge resistors. If that sounds conservative, good. I’ve seen discharge resistors fail open. The capacitors didn’t discharge. The maintenance tech who opened the cabinet the next morning found 280 volts waiting across a bank the size of a lunchbox.
It’s not theoretical. It’s the reason every industrial drive cabinet has a five-minute warning label before you open it. That label isn’t there because the manufacturer is cautious. It’s there because somebody’s potential energy formula killed somebody.
The $4,200 Mistake I Made in Pittsburgh
I need to be honest here. The Detroit servo spring wasn’t my fault. But the Pittsburgh mistake was.
In 2021, I spec’d a gantry system for a Pittsburgh automotive supplier. The application was simple: lift a 45-pound battery module 0.8 meters and place it in a test fixture. I calculated gravitational PE = mgh = 20.4 kg × 9.81 × 0.8 = 160 joules. Sized the lift cylinder for 200 joules. Plenty of margin. Except I forgot the fixture had a spring-loaded clamp that engaged after placement.
The clamp spring needed 42 joules of elastic potential energy to compress fully and lock the module. My cylinder had 200 – 160 = 40 joules of spare capacity. I was 2 joules short. The clamp couldn’t fully engage. The module sat loose in the fixture. The vibration from a nearby stamping press walked it out of position over three shifts. By the time someone noticed, the test had run 847 cycles on a misaligned battery. The supplier scrapped the entire lot. The rework cost me $4,200 in engineering time and replacement modules.
Here’s what I learned. Real systems don’t use one potential energy formula at a time. They use all three, stacked on top of each other. Gravitational PE lifts the part. Elastic PE clamps it. Electrostatic PE powers the sensors that verify placement. If you size any one of those in isolation, you lose. The math isn’t hard. What’s hard is remembering to do all the math.
Now I run what I call a stacked PE audit on every vertical motion system. I list every energy storage mechanism — spring, capacitor, lifted mass — and sum the potential energies. The actuator must handle 120% of that total. Not 110%. Not the biggest single contributor. The total. It’s overkill for simple systems. But it’s the difference between a cell that runs for six years and one that breaks in six months.
Two joules is the difference between a working cell and a broken one.
Key Takeaways
- Gravitational PE = mgh is just the beginning. It works for lifted masses near Earth’s surface, but your reference point matters — set h = 0 at the lowest surface in the motion path, not the floor.
- Elastic PE = ½kx² determines whether your springs return mechanisms safely or hammer them to pieces. Match stored elastic energy to motor continuous ratings with a 110% safety margin.
- Electrostatic PE = ½CV² lives in every capacitor bank. Size discharge circuits for the stored energy at rated voltage, not the average load. A failed discharge resistor turns capacitors into hazards.
- Stack your energies. Real automation systems store gravitational, elastic, and electrostatic potential simultaneously. Size actuators for 120% of the total stacked PE, not the largest single source.
- The $4,200 lesson: Classroom physics gives you the formulas. Shop-floor physics makes you add them up. The difference between a working cell and a broken one is usually 2 joules nobody bothered to calculate.
Frequently Asked Questions
Q: Which potential energy formula do I actually need for robot arm design?
A: Start with gravitational (PE = mgh) for vertical axes, but don’t stop there. If your arm has spring-loaded grippers or return mechanisms, you need elastic (PE = ½kx²) too. And if you’re running servo drives with capacitor banks, add electrostatic (PE = ½CV²). Most failures happen because engineers calculate one form and assume the others don’t matter.
Q: Why does the spring constant k matter more than the spring’s physical size?
A: Because stored energy depends on k, not dimensions. A small stiff spring can store more elastic PE than a large soft one. I once replaced a 3-inch spring with a 2-inch spring that had double the k value. The stored energy at full compression went from 14 joules to 28 joules. The motor couldn’t handle the return load. Size your actuators for ½kx², not for the spring’s outside diameter.
Q: Is potential energy formula really that critical in automation, or is this overthinking?
A: It’s critical when you’re at the margin. A system with huge motors and light loads has so much overhead that PE calculations don’t matter much. But modern automation runs tight margins for efficiency. A motor sized for exactly the job saves money and energy — until you forget the 42 joules in the clamp spring. Then the tight margin becomes a broken cell. According to Statista’s industrial robot installation data, automotive suppliers account for 28% of deployments in 2026, and most of them run lean margins where every joule counts.
Q: Can I just use simulation software instead of calculating potential energy formulas by hand?
A: Simulation helps, but it only models what you tell it to model. If you don’t define the spring constant, the capacitor bank, or the reference height in your CAD model, the software won’t magically add them. I use simulation for validation, not replacement. I calculate PE manually first, then check the simulation against my numbers. When they disagree, I find the missing constraint before anything gets built. For a deeper look at how energy calculations drive modern automation design, this Physics Education paper on gravitational PE localization explains why even basic energy assumptions need careful handling.
What the Textbooks Don’t Tell You About Potential Energy
The formulas are easy. mgh. ½kx². ½CV². What the textbooks don’t teach is that these equations don’t live in isolation on a factory floor. They stack. They interact. They surprise you at 2 AM when a spring that should have returned smoothly instead slams into a hard stop because you forgot to add its stored energy to the motor’s deceleration curve.
I’ve programmed 200+ robot arms, and the failures that cost real money were rarely complicated. They were basic physics, applied incompletely. A reference height set wrong. A spring constant copied from the wrong datasheet. A capacitor bank sized for steady state but not for inrush. Each one is a potential energy formula used in a vacuum.
If you’re building automation systems in 2026, do one thing before you power up the first prototype. List every place energy gets stored. Gravity. Springs. Capacitors. Add them up. Size your actuators for 120% of the total. It’s not conservative engineering. It’s honest engineering. And in sixteen years on factory floors, honesty has outperformed optimism every single time.
For a broader look at how robotics and physics intersect in modern manufacturing, our robotics manufacturing news coverage tracks the trends that actually matter — not the press releases, but the shop-floor shifts.
Robert Jack is a robotics integration specialist with 16 years in industrial automation, programmed 200+ robot arms across Detroit, Pittsburgh, and Austin automotive plants, and holds KUKA, Universal Robots, and ABB certifications. At Techynovate, he tests factory automation setups hands-on and tells you what the brochure won’t.
